TIMBER SEASONING SHELTER

Drawings

The principle geometry for TSS was designed through the parametric modeling tool, grasshopper, a Rhino plugin.  The design process demanded a feedback between the analog and digital platforms.  The process of steam-bending requires an empirical knowledge of material and physical power.  In order to fulfill the programatic requirements, the resulting doubly curved surface requires variable lengths and geometries, which was analytically composed through modern digital tools.  The building was physically built through an almost elementary process combining rudimentary technology, a projector and a manually adjustable jig with the digital output acting as a comprehensive set of build instructions.

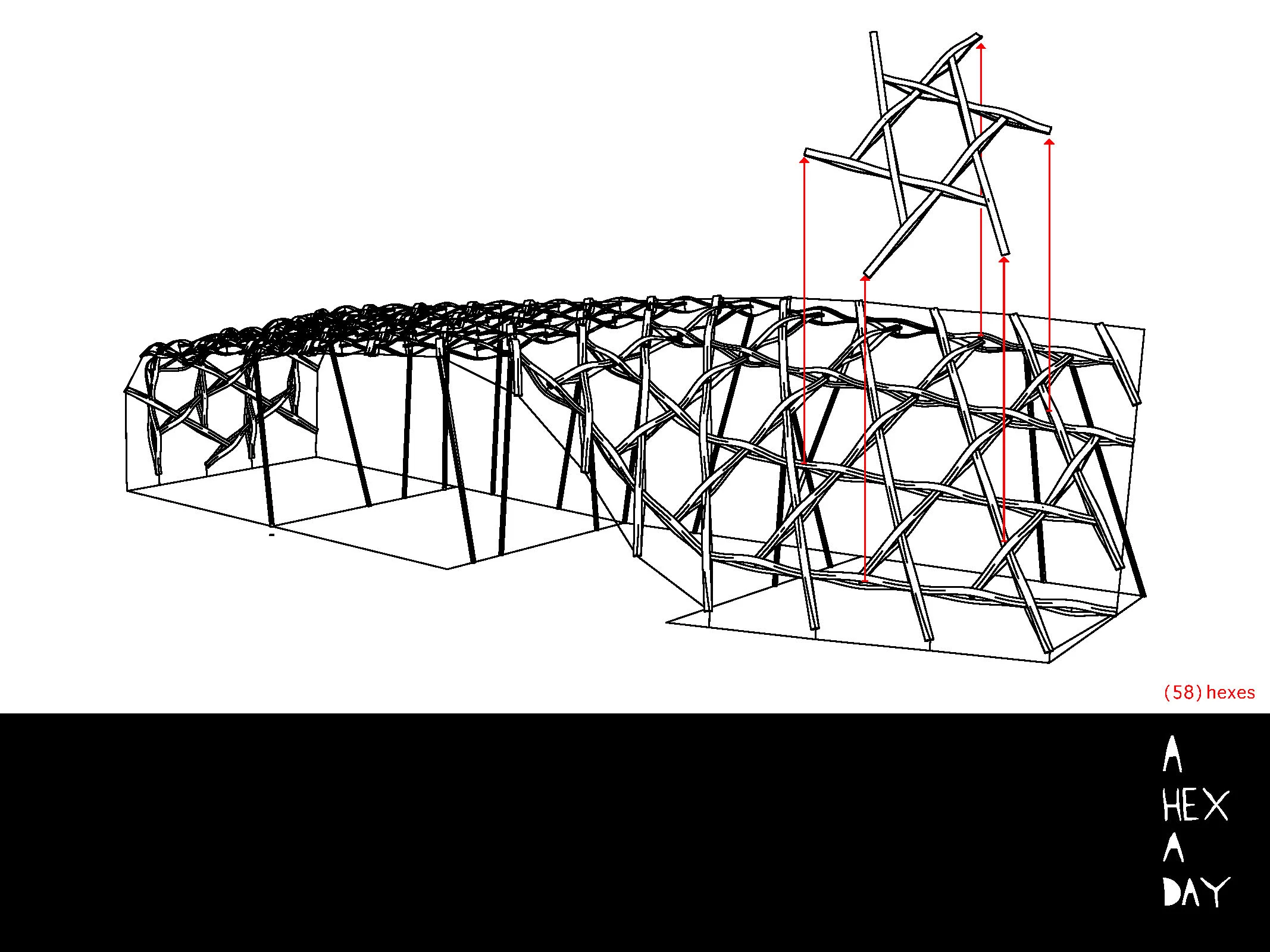

130722_SUMMERBUILD long 2.jpg
130722_SUMMERBUILD long 3.jpg

Single Component Sample

130722_SUMMERBUILD long 4.jpg

Variable Component Geometries

node connection.jpg

Node Connection Detail

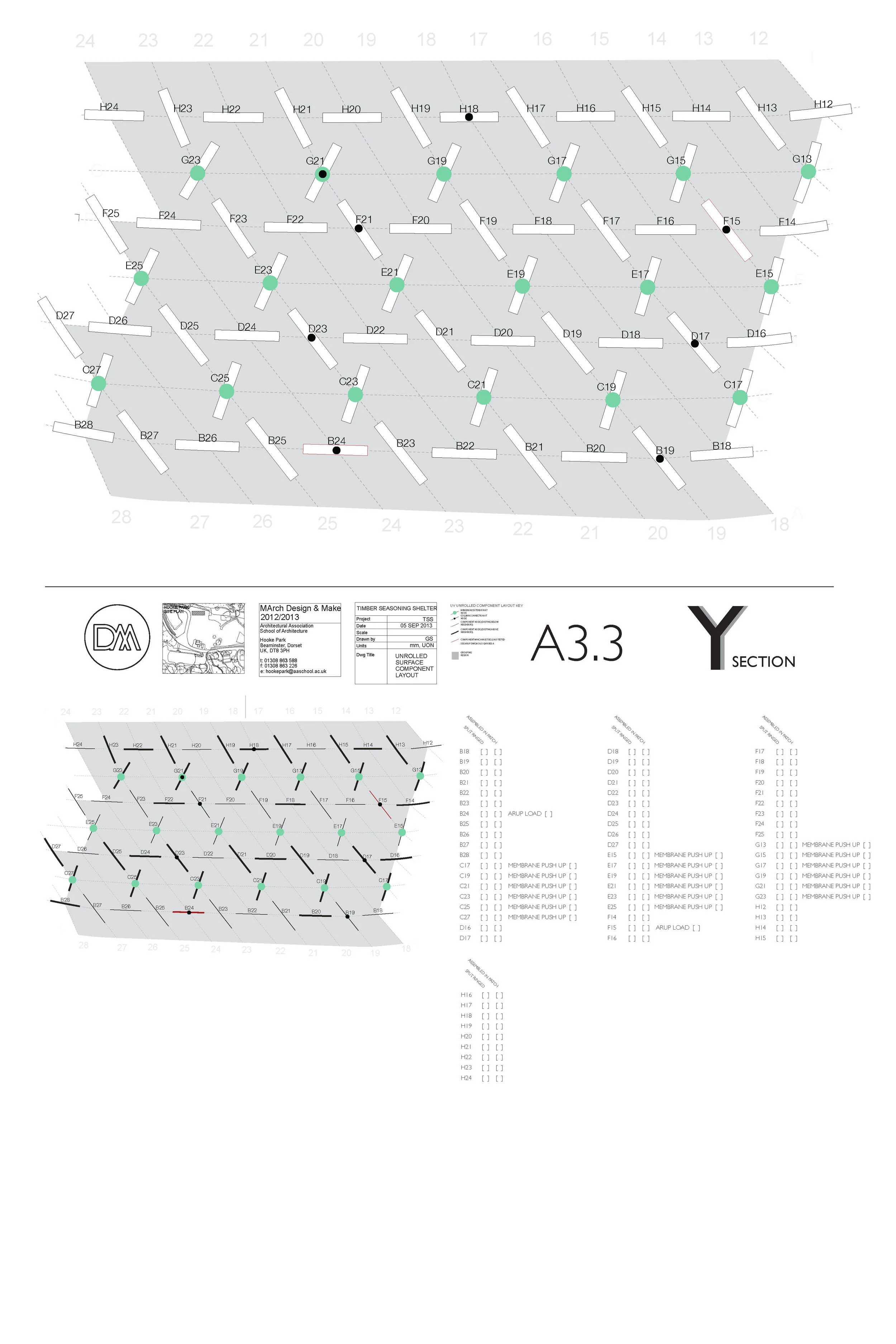

Assembly Map

130906_Patch Map_Page_2.jpg
130906_Patch Map_Page_1.jpg
130906_Patch Map_Page_4.jpg
130906_Patch Map_Page_3.jpg

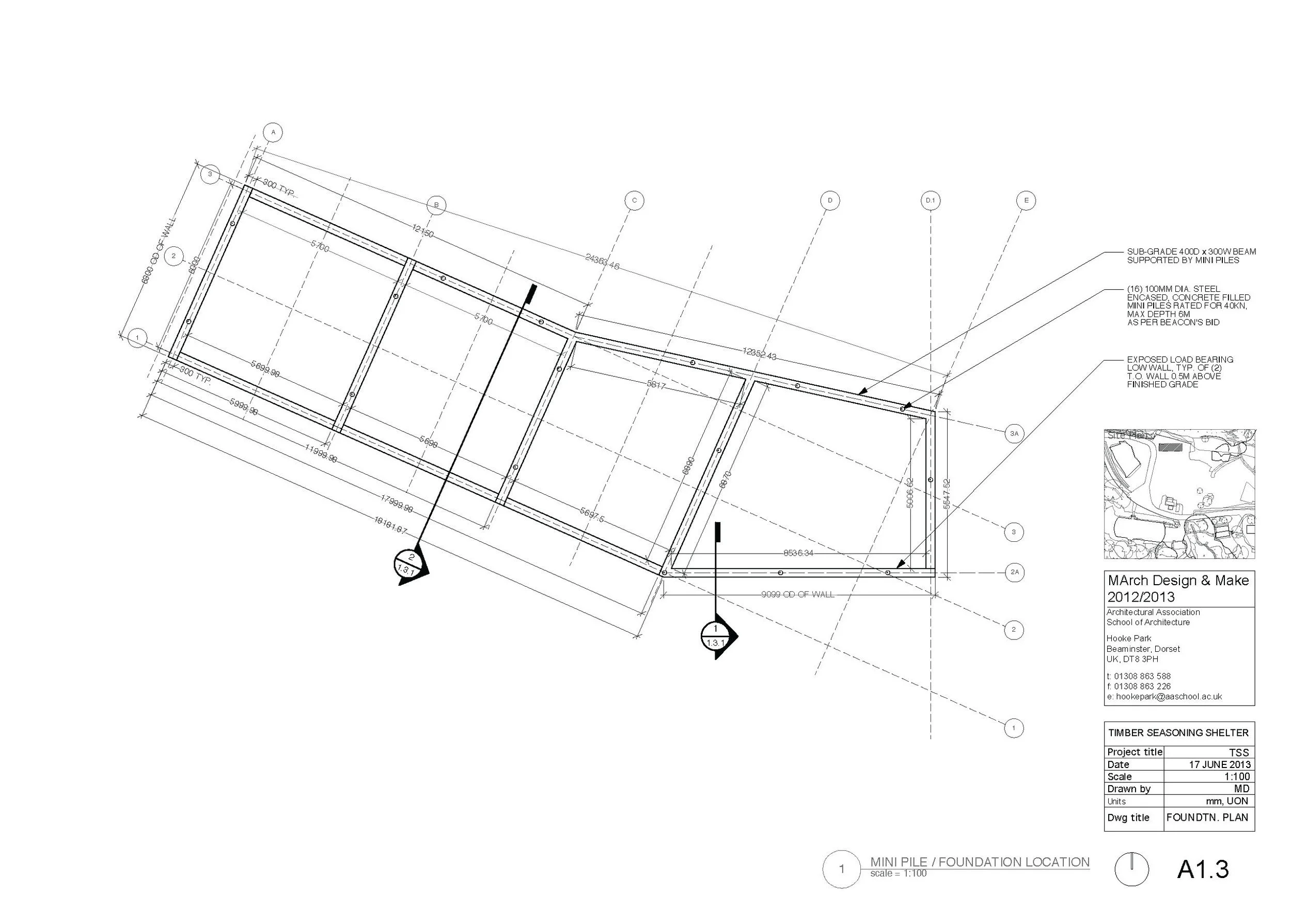

Groundworks Drawing Set

Column Fabrication Details



Drawing Credit: Meghan Dorrian, Glen Stellmacher
